SAMSUNG RAC COMFORT S2 COMPLETE SYSTEM 3.5KW R32 WINDFREE WIFI

Product Code: S2COMFORT3.5KIT | Availability: In Stock - 6

Samsung RAC Comfort S2 Complete System 3.5kW R32 WindFree WiFi

Click to enlarge image

Product Description

This New Samsung Windfree Comfort 3.5kW High Wall Air Conditioning System includes:

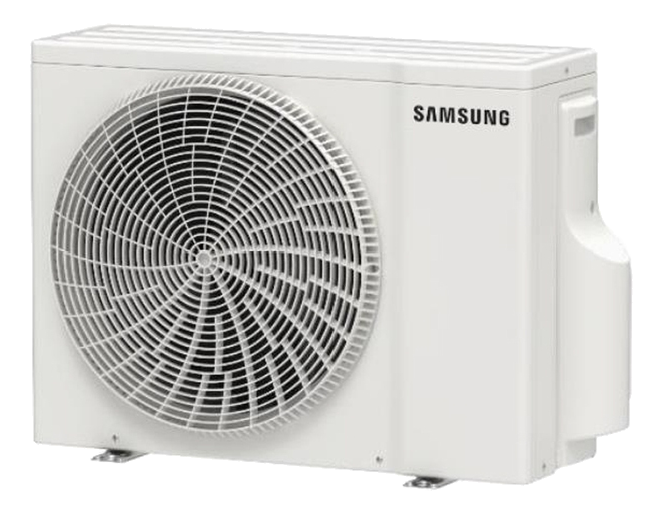

1 x AR60F12C1AWXEU - 3.5kW Windfree Comfort S2 Outdoor Single Phase Inverter Heat Pump

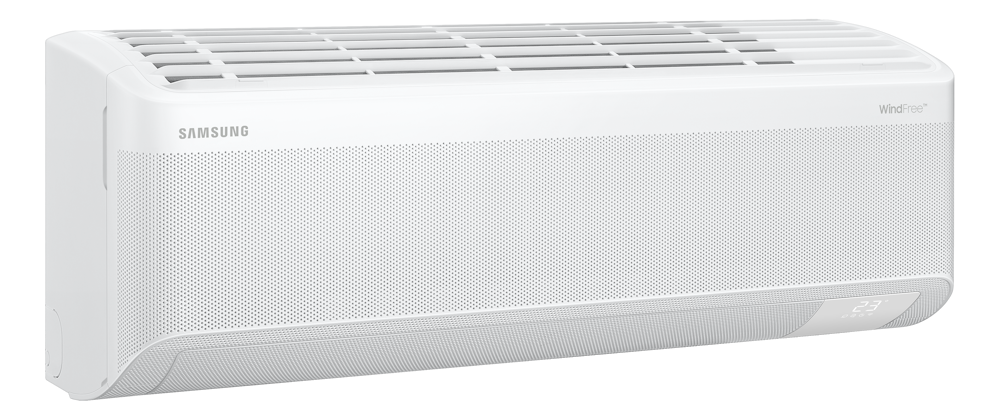

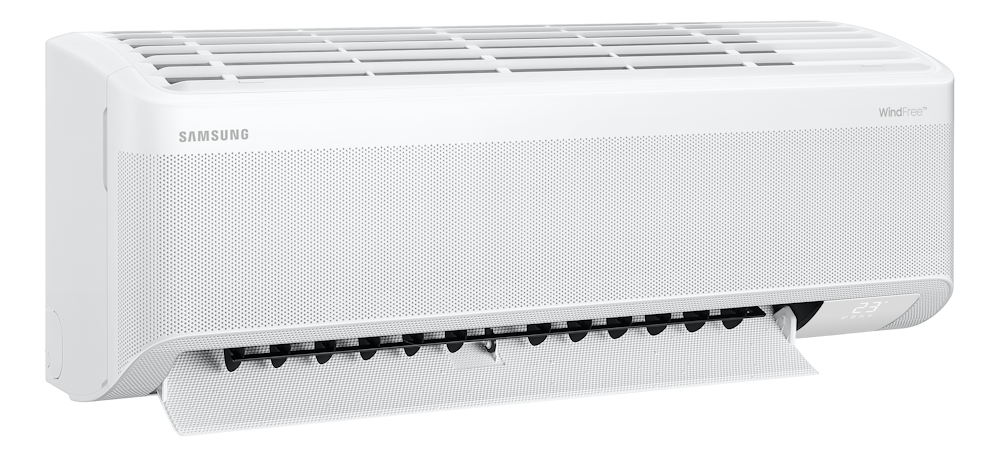

1 x AR60F12C1AWNEU - 3.5kW Windfree Comfort S2 Indoor High Wall Mounted Inverter Heat Pump

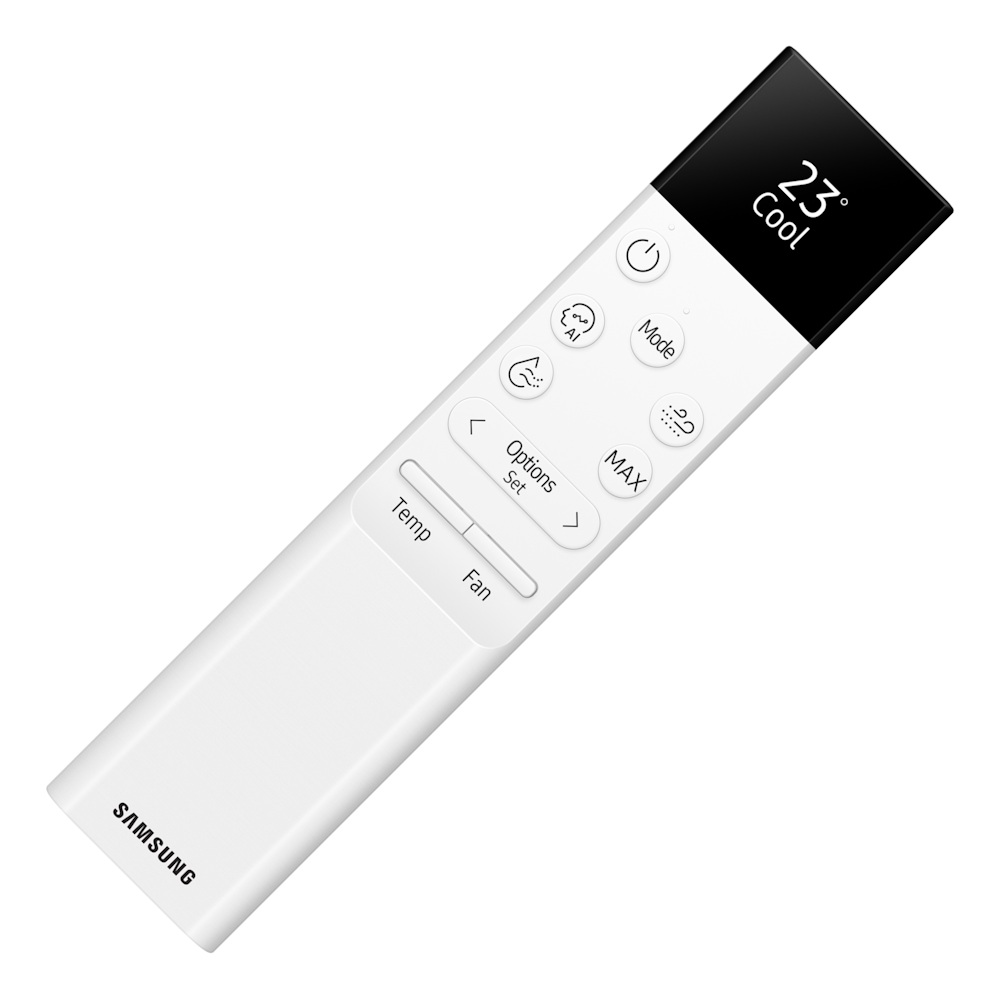

1 x SolarCell Infra-Red Handheld Controller


WindFree Cooling
WindFree technology enhances your indoor comfort by using thousands of micro-holes to disperse fresh air uniformly without any unpleasant blasts of cold wind. In WindFree mode, air is spread softly and silently, creating a 'Still Air' environment that provides you total well-being day and night.


Smart Operation
AI Auto Comfort introduces you to an intelligent way of living. It analyses your room conditions and usage patterns, and then automatically adjusts the temperature. Temperatures can also be managed remotely using the SmartThings App. Turning it on and off, selecting the cooling mode or scheduling its operation is just one touch away.


WiFi Control
Temperatures in your building can be managed remotely using the SmartThings App. Turning it on and off, selecting the cooling mode, scheduling its operation or monitoring the power consumption is just one touch away. The Bixby 2.0 Artificial Intelligence (AI) system analyses and predicts your needs so it can suggest the best settings for inside your home.

Capacity

Cooling (Nominal): 3.5 kW

Cooling (Min–Max): 0.9–4.2 kW

Heating @ +7°C: 4.0 kW

Heating (Min–Max): 0.85–5.0 kW

Heating @ -5°C: 3.7 kW

Heating @ -10°C: 3.12 kW

Heating @ -15°C: 2.61 kW


Performance

Energy Efficiency (Cooling)

SEER: 7.6 W/W (A++)

Power Consumption: 161.18 kWh/year

Pdesignc: 3.5 kW

EER: 3.54 W/W

Energy Efficiency (Heating)

SCOP: 4.6 W/W (A++)

Power Consumption: 700.00 kWh/year

Pdesignh (average): 2.3 kW

COP: 3.92 W/W

Moisture Removal

Removal Rate: 1.5 L/h

Maximum Airflow (Cooling)

Indoor Unit: 13.1 m³/min

Outdoor Unit: 38 m³/min

Sound Power

Indoor Unit (Cooling): 58 dB(A)

Outdoor Unit (Cooling): 63 dB(A)

Sound Pressure

Indoor Unit High/Silent Mode: 40 / 16 dB(A)

Outdoor Unit High: 46 dB(A)

Operating Temperature Range:

Cooling: -10 ~ 46°C

Heating: -15 ~ 24°C


Electrical Data

Power Supply: 1Ph, 220–240 V, 50 Hz

Compressor Type: Twin Rotary

Power Consumption (Cooling): 900 W

Power Consumption (Heating): 1020 W

Operating Current (Cooling): 4.4 A

Operating Current (Heating): 4.5 A


Dimensions

Indoor Unit Net Dimensions (W x H x D): 889 x 299 x 215 mm

Outdoor Unit Net Dimensions (W x H x D): 710 x 540 x 220 mm

Indoor Unit Net Weight: 9.9 kg

Outdoor Unit Net Weight: 24 kg


Refrigerant

Refrigerant Type: R32 (contains fluorinated greenhouse gases, GWP = 675)

Charging (for 7.5 m): 0.7 kg

Charging Ton Equivalent CO2: 0.47 tCO2e

Additional Refrigerant Charging: 15 g/m


Piping Connections

Liquid Pipe: 6.35 mm (1/4")

Gas Pipe: 9.52 mm (3/8")

Drain Pipe: 16.3 mm, 550 mm

Piping Length (Min/Max – ODU to IDU): 3 / 15 m

Piping Height (Max): 8 m


Functions

Airflow: WindFree™ Cooling

Air Direction Control (Up/Down): Auto

Air Direction Control (Left/Right): Auto

Auto Fan Speed: Yes

Air Purification

Easy Filter Plus: Yes

Auto Clean (Self-Cleaning): Yes


Operating Modes

AI Auto Comfort with Wi-Fi & MDS (direct/indirect): Yes

Auto Mode (without Wi-Fi): Yes

Fast Cooling: Yes

Good Sleep: Yes

Eco Mode: Yes

Dehumidification: Yes

Fan Mode: Yes

Quiet Mode: Yes


Other Functions

Samsung SmartThings Compatibility: Yes

MDS (Motion Detect Sensor): Yes

Indoor Temperature Display: 88 Display

Display On/Off: Yes

Beep On/Off: Yes

Auto Changeover: Yes

Auto Restart: Yes
